Construction Machinery Cylinder refers to the cylinder used in construction machinery, which is an important component that converts fluid pressure energy into mechanical energy to realize linear motion or provide power. The following is a detailed introduction:

Definition and Working Principle

  • A construction machinery cylinder is a mechanical actuator that converts hydraulic or pneumatic pressure into mechanical thrust. It mainly consists of components such as a cylinder barrel, a piston, and a piston rod. It operates based on the principle that fluid pressure acts on the piston, causing the piston to move, and the piston rod then transfers the force to the con

    struction machinery to achieve the corresponding motion.

Types

  • According to the working medium:

    • Hydraulic cylinders: Renowned for their high power and efficiency, they are suitable for heavy - duty tasks such as lifting and pressing. They can withstand high pressures and are widely used in excavators, cranes, and other equipment. For example, the single - rod hydraulic cylinders in excavators can achieve precise digging depths.

    • Pneumatic cylinders: Offer rapid movement and are often used in applications where speed is crucial. Although they have relatively lower power compared to hydraulic cylinders, they are simple in structure and have quick response characteristics. In construction machinery, they can be used in some auxiliary devices that require fast - acting, such as certain automatic door - opening and closing systems on construction vehicles.


  • According to the structural form:

    • Single - acting cylinders: They use fluid pressure to move in one direction and rely on an external force like a spring or gravity to return.

    • Double - acting cylinders: Fluid pressure is used to move the piston in both directions, enabling force application in both the extending and retracting strokes.

    • Telescopic cylinders: Composed of a series of nested cylinders, they can provide a long stroke in a relatively compact space, which is suitable for occasions where a large stroke is required but space is limited, such as in the lifting arms of some construction cranes.


Characteristics

  • High - strength and durability: Construction machinery often operates in harsh environments such as high - pressure, high - vibration, and abrasive conditions. Therefore, cylinders are usually made of high - strength steel materials and are coated with corrosion - resistant layers to ensure long - term reliable operation.

  • Good sealing performance: To ensure the normal operation of the cylinder and prevent fluid leakage, high - performance sealing materials and structures are required. The seals need to adapt to different working conditions such as high temperature and dust.

  • Precision and control: In order to meet the precise operation requirements of construction machinery, such as the precise control of the lifting height of cranes and the leveling accuracy of bulldozers, cylinders need to have high - precision manufacturing accuracy and may be equipped with position sensors and other devices to achieve precise control.

Applications

  • Excavators: Hydraulic cylinders are used to control the movement of the boom, arm, and bucket, enabling operations such as digging, lifting, and unloading.

  • Bulldozers: Cylinders are used to drive the blade to move, realizing functions such as soil pushing, leveling, and scarifying.

  • Cranes: Hydraulic cylinders are used in the lifting mechanism and telescopic arm mechanism to achieve the lifting and extension of heavy objects.

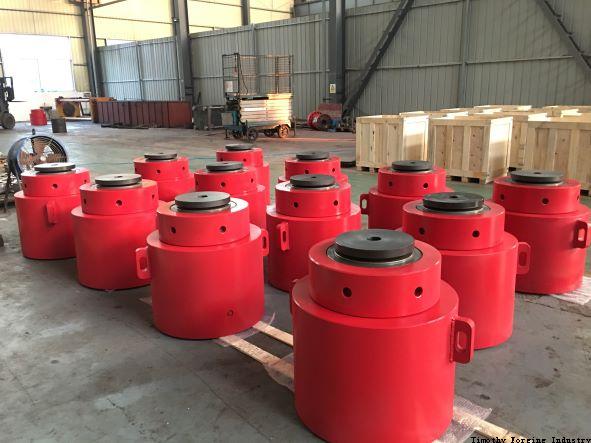

  • Construction Machinery Cylinder.jpg

Timothy Holding Forging Industry

Phone：+86-13758897904
E-Mail：sales@forging-shafts.com

               timothyforging@163.com

Website：http://www.forging-shafts.com

Add：No.68 Wanquan road,Shanquan Village ,Zhouzhuang Town

,Jiangyin City ,Jiangsu Province ,China
