Shaft Forgings and Methods to Improve Machining Accuracy

Quality of Shaft Forgings and Methods to Improve Machining Accuracy
The quality of shaft forgings primarily depends on three aspects: axialdimensional errorsradial runout errors, and assembly errors (e.g., loose or tight fits). Additional deviations may arisefrom measurement inaccuracies, machining flaws, or trial-cutting processes. Byanalyzing defect records (e.g., non-conformance reports), manufacturers canstatistically identify root causes (e.g., equipment, operator errors) andimplement corrective actions. Below is a structured approach to address thesechallenges:

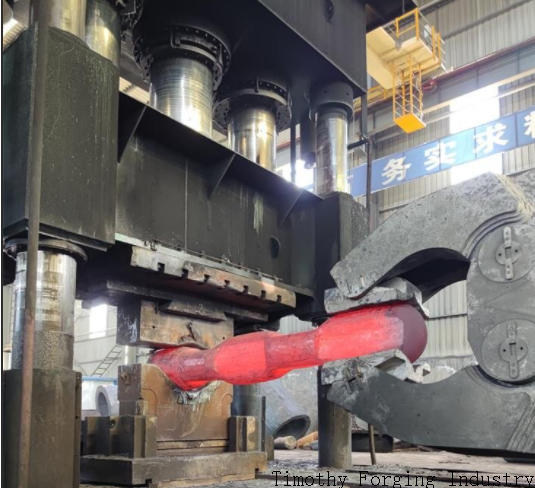

Forged Steel Shaft.png

1. Causes of Quality Issues in Shaft Forgings

  1. Systematic Machining Errors:

    • Approximate machining   methods (e.g., using form milling cutters for gears).

  2. Workpiece Clamping Errors:

    • Misalignment between the   positioning datum and design datum.

  3. Fixture-Related Errors:

    • Fixture manufacturing   defects, improper installation, or wear.

  4. Machine Tool Inaccuracies:

    • Geometric errors in   guideways, spindles, or feed systems.

  5. Tooling Errors:

    • Tool manufacturing   deviations or wear during use.

  6. Workpiece Inherent Defects:

    • Pre-existing dimensional,   form, or positional errors in the raw forging.

  7. Thermal/Mechanical     Deformation:

    • Distortion due to cutting      forces, residual stresses, or temperature changes.

  8. Measurement Errors:

    • Inaccuracies from gauges,   calibration drift, or operator technique.

  9. Setup Errors:

    • Incorrect   tool-to-workpiece alignment during adjustments.

2. Strategies to Improve Machining Accuracy

A. Error Prevention Techniques

  1. Direct Error Reduction:

    • Identify and mitigate   dominant error sources.

    • Example: For slender shafts prone to bending, use reverse   cutting with a follow rest to apply tensile forces, reducing   deflection.

  2. Error Redirection:

    • Shift errors to   non-critical directions.

    • Example: On turret lathes, orient cutting tools vertically   to redirect sensitivity from radial to tangential axes.

  3. Error Averaging:

    • Group workpieces by error magnitude and adjust processes to offset deviations.

    • Example: Divide shafts into batches with similar dimensional errors; each batch’s tolerance band shrinks by 1/n.

  4. In-Process Machining:

    • Finalize critical features after assembly to ensure alignment.

    • Example: Bore the tailstock center hole directly on the   lathe to match the spindle axis.

B. Error Compensation Techniques

  1. Real-Time Compensation:

    • Use in-process      measurement (e.g., laser sensors) to dynamically adjust tool      paths.

  2. Selective Assembly:

    • Pair components based on measured tolerances (e.g., match a shaft with a bearing based on actual dimensions).

  3. Thermal Compensation:

    • Pre-heat tools or use coolant to stabilize machining temperatures.

  4. Adaptive Control Systems:

    • Integrate CNC feedback loops to correct tool wear or deflection.

3. Key Quality Control Measures

  1. Fixture Optimization:

    • Use precision-ground locators and self-centering chucks to minimize clamping errors.

  2. Tool Management:

    • Implement tool wear   monitoring and replace inserts based on lifecycle data.

  3. Machine Calibration:

    • Regularly validate spindle runout, bed flatness, and axis alignment per ISO 230 standards.

  4. Process Standardization:

    • Adopt lean manufacturing   principles (e.g., Six Sigma) to reduce variability.

  5. Post-Machining Inspection:

    • Measure critical features (e.g., radial runout with dial indicators, surface roughness with   profilometers).

4. Case Study: Reducing Radial Runout inAutomotive Axles

  • Problem: Radial runout exceeding 0.05 mm due to residual   forging stresses.

  • Solution:

    • Introduce stress-relief   annealing before machining.

    • Use hydrostatic steady   rests during turning to dampen vibrations.

  • Result: Runout reduced to ≤0.02 mm, achieving ISO 2768-mK   tolerance.

5. Industry Standards and Best Practices

  • ISO 12107: Fatigue testing for forged shafts.

  • ASME B46.1: Surface texture specifications.

  • GB/T 1804: Chinese standard for general tolerances.

Conclusion:
By combining error prevention (e.g., robust tooling setups)and compensation strategies (e.g., adaptive CNC controls),manufacturers can achieve high-precision
shaft forgings while minimizing scrap.Continuous monitoring, data-driven adjustments, and adherence to internationalstandards are critical for sustaining quality in high-volume production.
